THE NEXT GENERATION OF LIGHTING

The FNG series combines power, intensity and style in a redesigned compact build. Level up your driving experience with advanced optics, controlled beam patterns, and intense brightness. Crafted and designed to provide the performance when you need it!

FEATURES

High-Intensity Osram LEDs: The FNG series is our Biggest and Brightest light pod ever! Each circuit board is composed of 4x 5W high-intensity Osram LED chips.

IP67 Waterproof Rate: FNG 3” Series meets the IP67 water and standard dust proof rate. It is 100% protected against solid objects like dust and sand. It has been tested to work for at least 30 minutes under 1m of water.

Thermal Management: Unlike other designs, the FNG series are equipped with large heat fins that allow the LED chips to cool properly for extended use. Engineered to perfection the FNG Series will brighten your adventures to the max.

TIR Optic Technology: The TIR (Total Internal Reflection) is an internal lens within the light housing. It captures and emits more light directly from the LED chip than your traditional light housing (such as a parabolic reflector).

BEAM PATTERNS

SAE Driving J581: The beam has a spread of 60 degrees. It used to work in conjunction with your high beams and has more focus and aim than a traditional spot beam. If you need that extra boost of street legal output looks no further.

SAE Fog J583: Beam provides an 80-degree spread. It should replace your factory OE fog light assemblies and create an intense wide that will light up the ditches and the road ahead. Our street-legal fog light replacements with focused optics and intense LED Osram chips will keep you safe in any weather.

DIMENSIONS

FNG 3 LED pod diagram: Exploded view showcasing high-output Osram chips and rugged enclosure.
FNG 3 LED pod diagram: Schematic illustrating TIR optic technology and precise light emission.
FNG 3 LED pod diagram: Cross-section diagram highlighting thermal management with large heat fins.

FNG 3 Products Details

FNG 3 info sheet

SKU: 10110 10120 10210 10220 11110 11120 11210 11220 12110 12120 12210 12220
QUANTITY: 2x SAE Pods 2x SAE Pods 2x SAE Pods 2x SAE Pods 2x SAE Pods 2x SAE Pods 2x SAE Pods 2x SAE Pods 2x SAE Pods 2x SAE Pods 2x SAE Pods 2x SAE Pods
LIGHT OUTPUT: 2000 LM  2000 LM  2000 LM  2000 LM  2000 LM  2000 LM  2000 LM  2000 LM  2000 LM  2000 LM  2000 LM  2000 LM
DIMENSIONS: 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6” 3.0” x 3.0” x 2.6”
CERTIFICATION: SAE Y J581 SAE Y J581 SAE Y J581 SAE Y J581 SAE Y J581 SAE Y J581 SAE Y J581 SAE Y J581 SAE Y J581 SAE Y J581 SAE Y J581 SAE Y J581
OPTICS: Driving Light Driving Light Fog Light Fog Light Driving Light Driving Light Fog Light Fog Light Driving Light Driving Light Fog Light Fog Light
COLOR: White Amber White Amber White Amber White Amber White Amber White Amber
SHAPE Standard Standard Standard Standard Round Round Round Round Flush Flush Flush Flush
LED CHIP: Osram Osram Osram Osram Osram Osram Osram Osram Osram Osram Osram Osram
WATTS: 20w 20w 20w 20w 20w 20w 20w 20w 20w 20w 20w 20w
CURRENT: 1.6A @12v 1.6A @12v 1.6A @12v 1.6A @12v 1.6A @12v 1.6A @12v 1.6A @12v 1.6A @12v 1.6A @12v 1.6A @12v 1.6A @12v 1.6A @12v
IP RATING: IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67
WARRANTY: 7 Years 7 Years 7 Years 7 Years 7 Years 7 Years 7 Years 7 Years 7 Years 7 Years 7 Years 7 Years

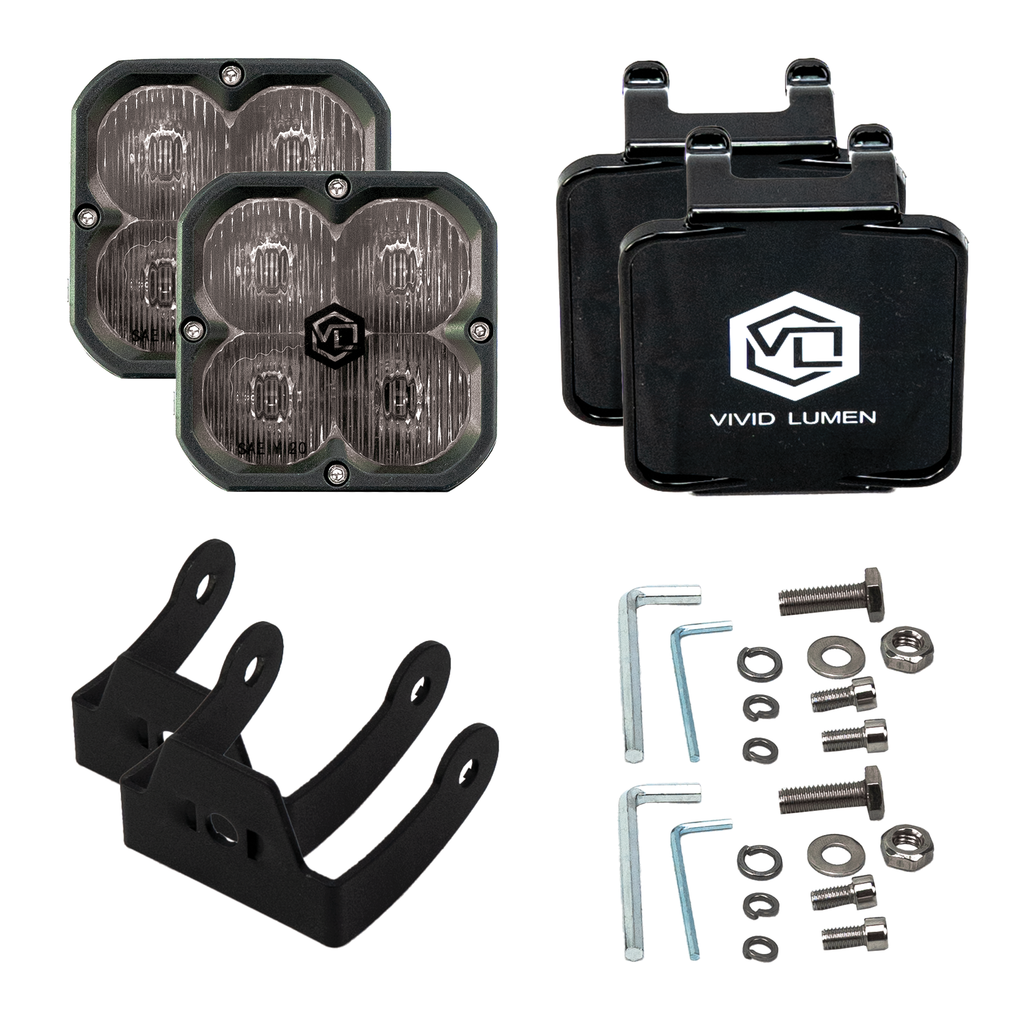

  • 2x FNG SAE Pod Light
  • 1x Dual DT Wire Harness
  • 2x Mounting bracket (Standard and Round Styles Only)
  • 2x Black Covers
